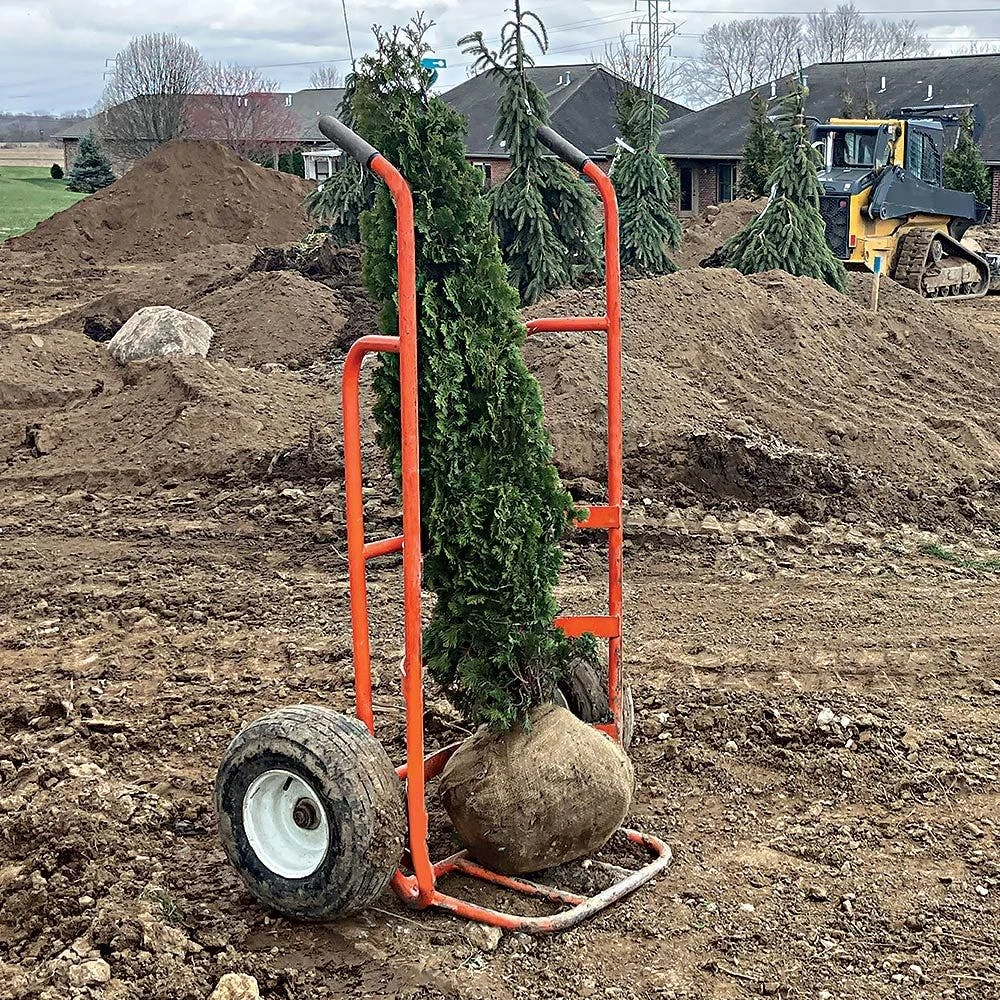

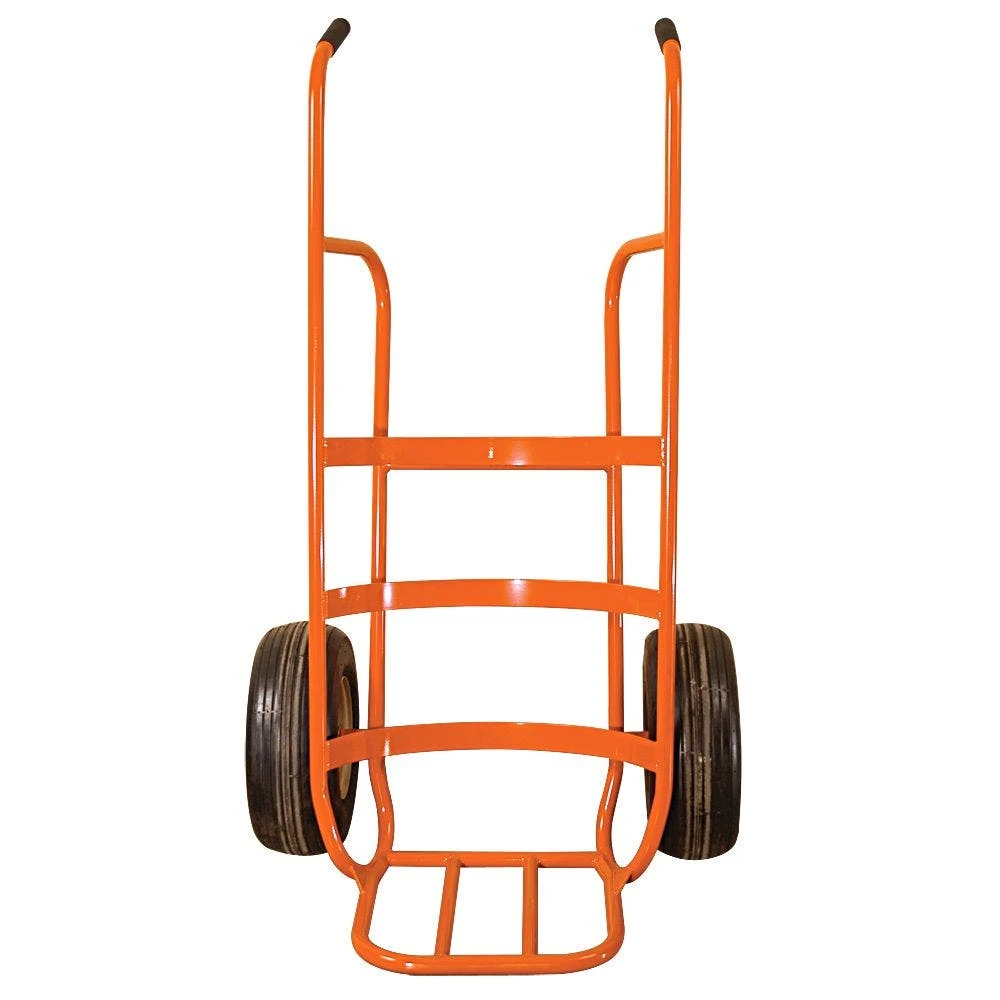

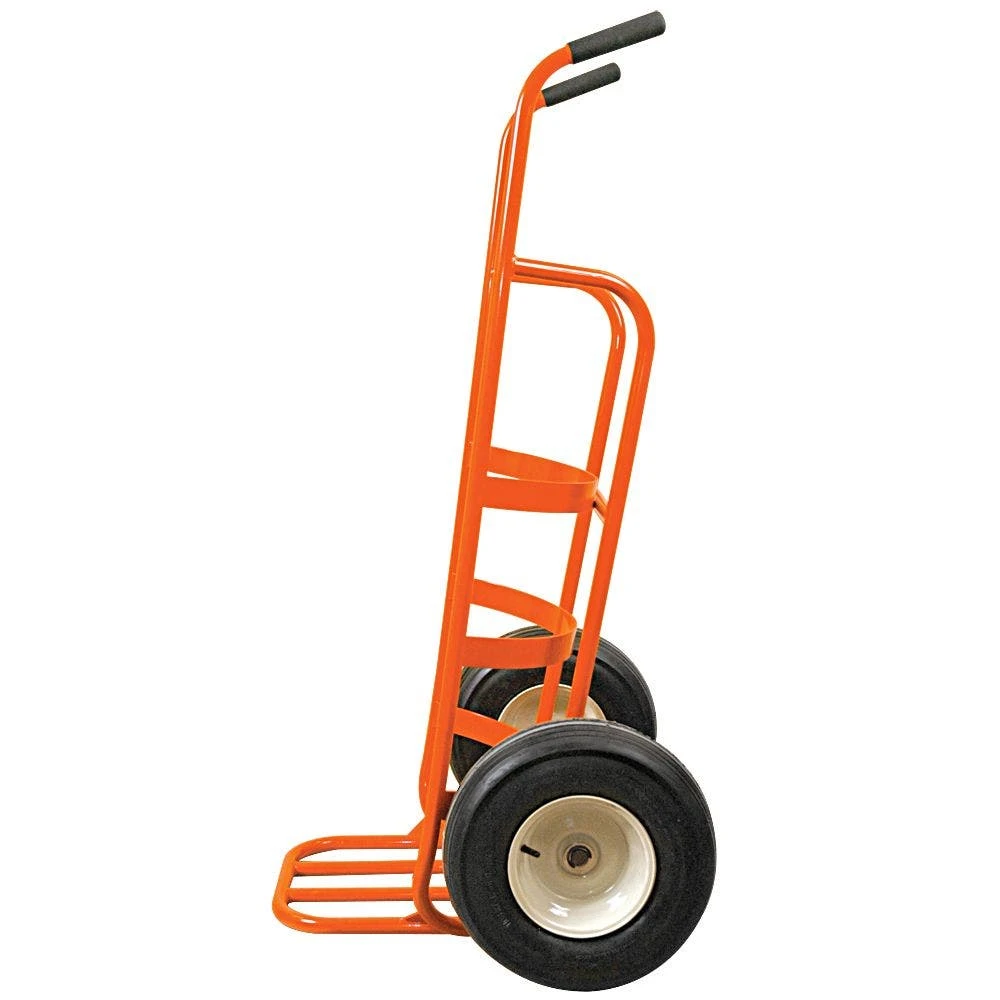

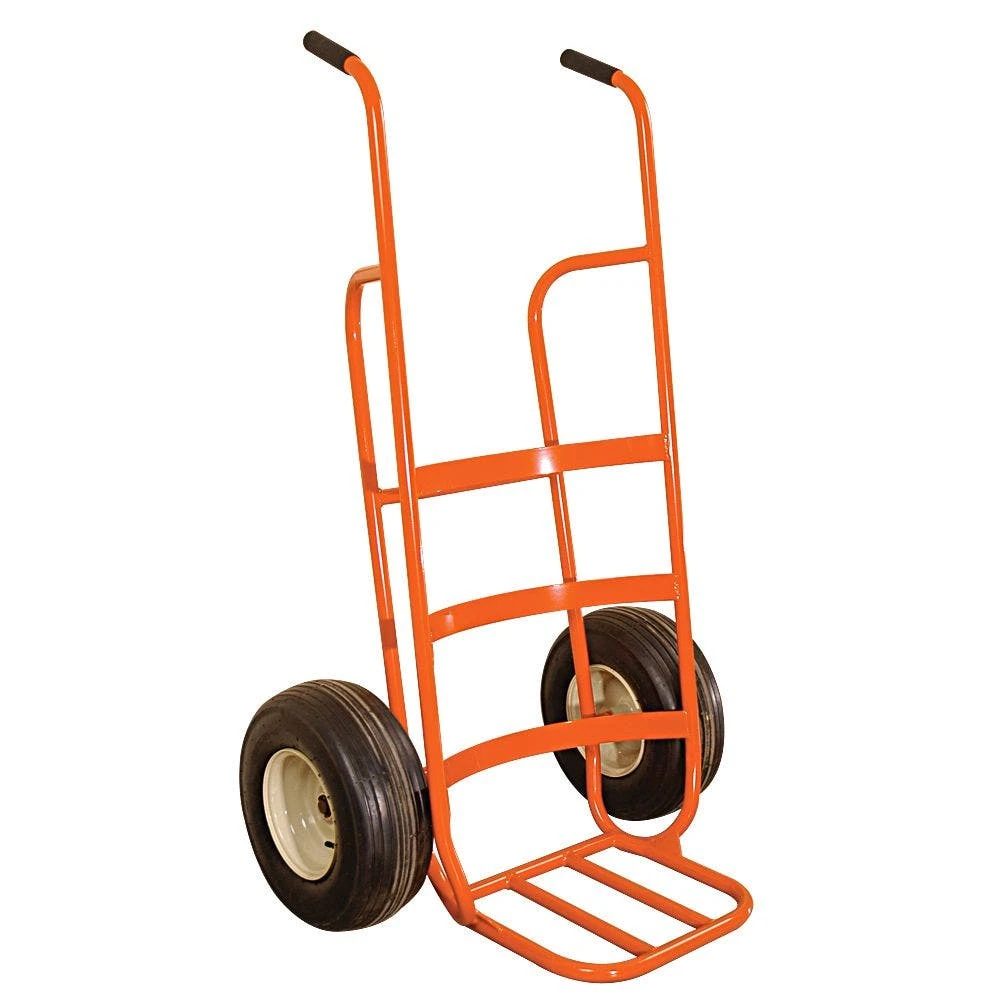

Leonard Nursery Truck Extended Lift 1000 Lbs, Pneumatic Tires

Product Shipping Methods

• Please Note: Due to shipping carrier restrictions this item ships via Motor Freight only.

Product Specs

• 1-1/8″ diameter, 14 gauge frame
• 15-1/4″ x 17-3/4″ extended nose for all purpose loading
• Cart is 59″ high x 34″ wide overall. Inside width is 22″, inside depth is 19-1/4″, inside width 22″.
• 1000 lb capacity
• Solid 1″ steel axle and wide profile high capacity 16″ x 6.5″ tires are standard on all our nursery trucks

Product Warranty Information

Product Features

• Well balanced design
• The nose really has extra depth because of the concave back on the cart
• High strength steel tubing
• Oilite wheel bearings
• Double vertical frame tubes on each side
• Solid 1″ steel axle and wide profile high capacity 16″ x 6.5″ tires are standard on all our nursery trucks

Product Benefits

• The balance of the truck eases the operation
• Extra depth at the nose allows you to carry a container, pot or drum
• The superior strength of the tubing resists bending under weight
• Oilite bearings in the wheels outlast other bearings
• The double vertical frame tubes provide exceptional strength
• The standard axle and tires on all our nursery trucks hold up to your demands. The wide tires are easier to roll across turf.

Product Shipping Weight

• 104 pounds

Frequently Asked Questions

QUESTION: What order is the hardware installed when mounting the wheels? ANSWER: The order of washers is not important, as long as you have at least one on each side of the wheel. The crescent moon shaped arc rings go on the out side on the groove at the end of the axle. QUESTION: Do the Zerk fittings on the wheels need to be greased? ANSWER: Yes, the customer should do this on its arrival, and periodically as needed.

Additional Product Information

• Leonard Tough Truck Assembly Instructions and Parts
