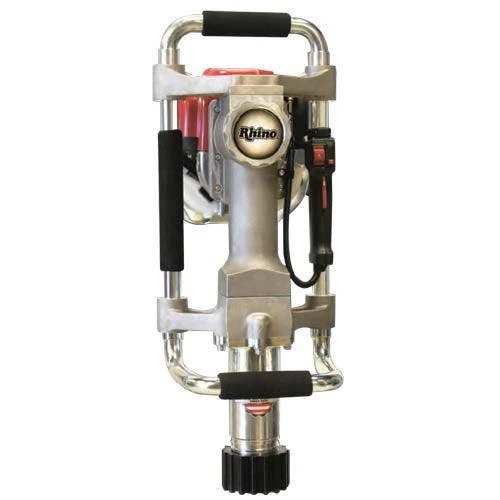

Rhino Multi-Pro Post Driver

Direct Shipment Notice

Please note: this item ships directly from the manufacturer, and is excluded from free shipping promotions.

Product Specs

• Master Chuck ID: 2.5” (63.5mm)
• Driver Only Dimensions: 11″ W x 14″ D x 26.75″ H
• Driver Only Weight: 43.7 lbs. (19.8 kg)
• Engine: Honda GX35 4-stroke
• BPM (beats per minute): 1720 (approximate)
• Fuel: Unleaded Gas, 86 octane or higher
• Fuel Capacity: 0.67 qt. (0.63 ltr)
• Engine Oil: SAE 10W-30
• Grease: RHINO® Pro Series Lubricant
• T-Post: 1-3/4” Adapter (Included)
• Ground Rod, 1/2″ & 3/4″: 1” Adapter (Included)
• Concrete Form Pin, 1″: 1” Adapter (Included)
• Round Pipe, 1”­ to 1-5/8”: 1-3/4” Adapter (Included)
• Round Pipe, 1-7/8”: 2” Adapter (Included)
• Round Pipe, 1-3/4″ to 2-3/8”: Standard Chuck (Included)
• Square Tube, 1-1/2″ to 2-1/2”: Square Tube Chuck (Optional) * Requires a Drive cap

Product Warranty Information

Product Features

• Larger body, hammer, and anvil provide 35% more hitting power than the Ranch Pro™.
  Includes Rhino™ Chuck-Lok™ 1″, 1-3/4″, 2″ Adapters
• Versatile external chuck design can be configured for driving 1.2-4 lb channel post, tent stake, or 1-3/4″ to 2-1/2″ square sign post and square post sign anchor with a drive cap.
• Quick change chuck is designed to receive the Chuck-Lok™ Adapter System and be quickly removed when changing accessories
• Two-piece adapter design allows quick removal of driver from the post
• Equipped with Rhino’s CIS™ Vibration Dampening
• Padded grip for handling comfort
• Powered by Honda™ GX35 4-Stroke Engine
• Shock resistant heat-treated steel components
• Sealed bearings on all rotating parts
• Removable bottom handle
• Rhino Lifetime Impact Warranty. See warranty statement for details.

Product Shipping Weight

• 44 pounds

Frequently Asked Questions

1. Can the Rhino Multi Pro Post Driver accommodate different post sizes?
Yes, the Rhino Multi Pro Post Driver has a Chuck Lok Adapter System that allows the operator to quickly install post adapters in the field, ranging in application from 1 in to 2 3/8 in round posts. It can also be configured with optional chuck and anvil for driving 1.2 4 lb channel post, tent stake chuck, concrete form pin chuck, or 1 3/4 in to 2 1/2 in square sign post and square post sign anchor with a drive cap.

2. What is the power source of the Rhino Multi Pro Post Driver?
The Rhino Multi Pro Post Driver is powered by a Honda 4 cycle engine with a 4-stroke, 35.8 cc motor.

3. What is the weight of the Rhino Multi Pro Post Driver?
The Rhino Multi Pro Post Driver weighs 44 lbs.

4. What types of posts can the Rhino Multi Pro Post Driver drive?
The Rhino Multi Pro Post Driver is good for T posts, ground rods, and stakes up to 2 & 3/8in diameter, and square stakes up to 2 & 1/2in diameter. It also has a vibration dampener for comfortable use.
